Scope
⚫ The specification applies to single layer Capacitor. Type : MSC01S2175
⚫ Single Layer Capacitor MSC01S2175

Structure
⚫ Electrode topside (anode) : Au=5000±500A
                    backside(cathode) : Au=1000±200A
⚫ Dielectric Constant(SiNx) : 7.5

Size
⚫ Chip size (After dicing) : 750±20μm*750±20μm
⚫ Thickness : 210±15μm

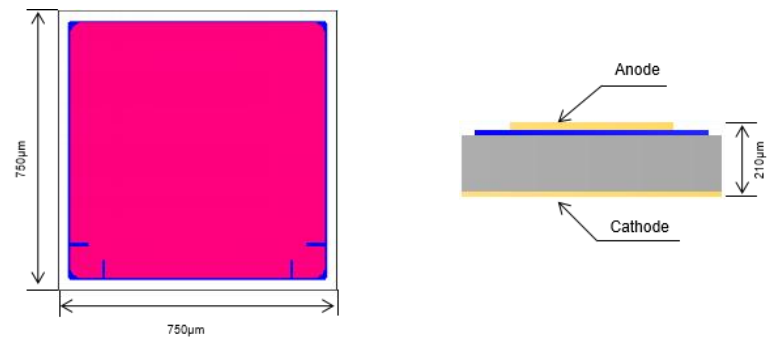

⚫ Pattern drawing : per fig.1

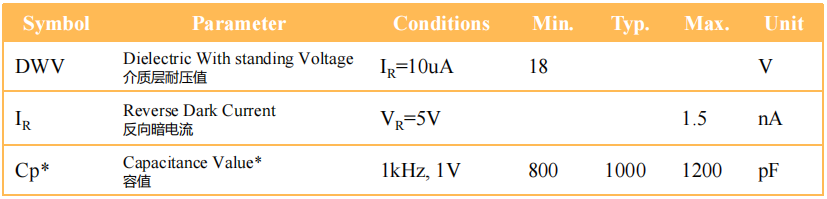

Electrical Characteristics
* Capacitance value is sampling measurement

* The whole topside metal can be wired.
