General Description
⚫ Target applications are decoupling and filtering of active devices when miniaturization is required. This product is a single 220pF capacitor in 0.44 x 0.44mm package size.
⚫ MMSC06A capacitors have the bottom electrode in Ti/Ni/Ag (0.9µm) and top electrode in aluminum.

Key Applications
⚫ Supply decoupling/filtering of active device
⚫ Wide application and range, such as Lidars, Radars as well as Mems,sensors, TPMS…
⚫ High reliability applications
⚫ High volumetric efficiency
⚫ Devices with battery operations

Structure
⚫ Electrode topside (anode) : AL=25000±500A
                    backside(cathode) : Ti/Ni/Ag=9000±200A
⚫ Dielectric Constant(SiNx) : 7.5

Size
⚫ Chip size (After dicing) : 440±20μm*440±20μm
⚫ Thickness : 250±15μm

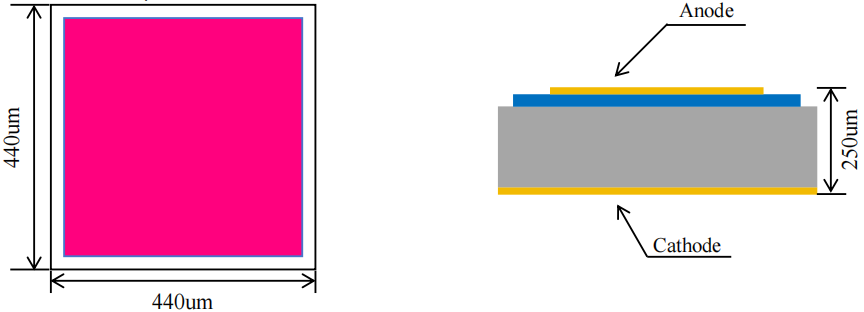

⚫ Pattern drawing : per fig.1

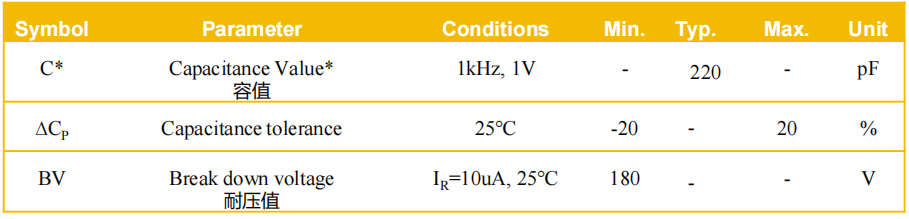

Electrical Characteristics
* Capacitance value is sampling measurement
* The whole topside metal can be wired.
